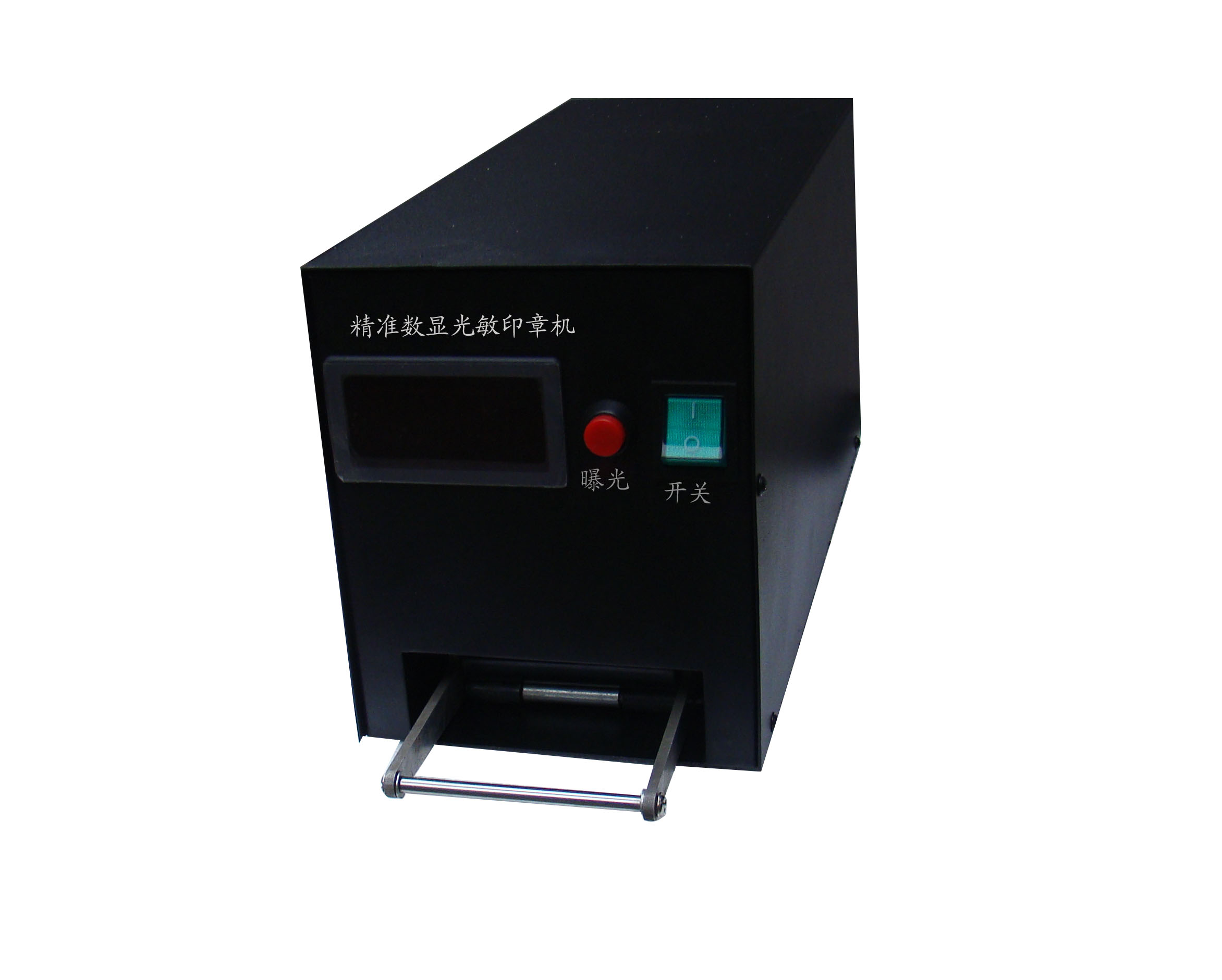

MS - 1000 (display) like photosensitive seal machine

Update: 2015/10/6      View:
  • Brand:    MS
  • Type:
  • Order Online
Introduction

Product introduction
Photosensitive seal machine digital display like (drawer)
1, double exposure lamp single design, operating more simple, the exposure uniformity is better.
2, using high quality quartz bulb, longer service life.
3, built-in precision voltage regulation circuit, need not worry about the effects of power grid voltage fluctuation
4 5, exposure energy level is adjustable, to adapt to different grid voltage.
5, professional jig design, stamp pad can be a very good close, make the seal that exists.
6, no stamp pad, inkpad, can be repeated filling.
7, clear seal deformation, is not affected by the printing pressure.
8, the service life of more than one hundred thousand times.
9, fully conform to the requirements of the seal management information system of public order.
Scope of application:
Used in photosensitive seal, seal, seal pen portraits, cartoon image, the manager instead of a pen, can also be widely used as a personal portrait and name, telephone into a digital portrait seal is as clear as photos, cartoon chapters, signature, stamp, name card, the micro chapter, chapter mementoes, icon, etc.
Product parameters:
Software: 1062 or 10521 6.99 7.9 typesetting software
Maximum output power: 2200 joules
The output voltage range: 360-400 v (AC)
Maximum charging time: 10 seconds
Exposure range: 110 * 70 mm
Dimension: 335 * 140 * 140
(straight) to the number of tubes: two
Weight: 8 kg
Exposure energy: 2200 j
Voltage: 220 v + 10% / 50 hz
Clamp size: 9 * 22 metal/plastic 10 * 24.5
Exposure energy: 2200 j; Ae counts: 2; Maximum exposure area of 110 * 70; Working power supply: AC220V plus or minus 5%, 50 hz; Resolution: 0.0256; Maximum output power: 1800 joules; Range of exposure voltage: 360 v - 400 - v; Maximum charging time: 30 seconds;
Product features: this machine is double tube machine, high strength 12160 exposure control at a time when the exposure can be made into finished products. Exposure box design allows users to use more convenient, the production process be clear at a glance, machine cabinet, fashionable. Easily make microcode grain line seal text (< 1 mm grain line < 0.5 mm) and rich layers of images. Chapter support handwritten signature, seal, seals, such as special font image exposure process only need 10 seconds, greatly improving the system efficiency. The machine adopts precision digital voltage display.
Introduction to the photosensitive seal machine
Photosensitive seal machine (commonly known as photosensitive mirror wedding portrait seal machine seal engraving machine) on the photosensitive seal as the international latest a seal, with its make simple and quick, seals clear, service life is long, applicability, promoted rapidly in our country, to become China's seal industry upgrading products. As * * department of standards issued and implemented GA241.9-2000, photosensitive seal machine has been identified as standard preferred seal machine, the product has to make quick and easy, many advantages as high working speed, desirable), one hundred thousand consecutive sealing, seal surface does not shrink, deformation, imprinted clear non-proliferation, many long do not fade, continuous note oil, use continuously. Can produce 0.1 mm anti-counterfeiting stripes. Separate exposure box design, registration accuracy. Exposure is more efficient, energy sufficient, lighter weight machine. Whole beautiful appearance, simple operation, all a chapter mat exposure molding, durable.
Photosensitive seal machine principle of work
Photosensitive seal machine related operation method
1) will make a good sample with laser printers print on LiuSuanZhi or film. 2) according to the sample specification covered with transparent film exposure, 3) printed sample, exposure film, photosensitive seal cushion between the three order according to the different photosensitive machine change. Stone display machine, for example, print proof (mat) on the bottom, clingy photosensitive machine glass plate, the middle tier for exposure film,. Print proof on the top, clingy photosensitive machine exposure drawer glass, print face down, the three close contact, in turn cover handle the pressure. 4) switch on the power and open the power switch, the machine start charging. 5) the machine adopts depending on the voltage meter shows that free random exposure exposure method. Exposure voltage range from 160 v to 160 v, can be exposed. (used for the first time, it is recommended that the user use leftover material first to test out for the best exposure voltage values. This chapter cushion for some domestic photosensitive mat exposure voltage value: LiuSuanZhi typescript 240 v, film typescript 220 v). Stay photosensitive machine charging indicator reaches mat exposure voltage needed for this chapter, turn the power off, press the trigger button exposure, exposure. 6) loosen the clamp handle, open box, remove after exposure of photosensitive mat, 7) to remove the film exposure good printing pad into the corresponding chapter shell, inject scalar are many seals according to the specifications, user shall be distributed evenly, can deliver customers to use.
Photosensitive seal mechanism for knowledge and the matters needing attention
Photosensitive machine mechanical compaction device is photosensitive seal machine is an important part of. Photosensitive seal cushion when exposure should not only be enough strong light irradiation, the thickness of the printing pad itself also needs to be compressed to a certain size, such ability can have good exposure effect, therefore, when designing photosensitive seal cushion mechanical compaction device evenly all need not only pressure, pressure and need enough and able to apply different photosensitive seal cushion thickness. The photosensitive seal cushion thickness is generally between 3 mm to 7 mm, pressure when the general thickness needs to be narrowed to around half of the original thickness, such as 7 mm printing pad need to be compressed to about 3-4 mm exposure to keep up the good effect. Design a good appearance, is convenient, the cost is appropriate clamping device is very important to improve the quality of photosensitive seal production.
Note: 1) the instrument contains high pressure, please don't random open case, if there is any fault, please do not hesitate to contact our company. 2) to prolong service life, please keep working environment clean. 3) the machine contains photosensitive glass tubes, use and handling in the process of light to take light put, please. 4) this machine on the power switch, the computer begins to charge when the photosensitive machine preparation, to prolong service life, please get into boot before use, the habit of turn off the power supply in a timely manner after exposure, don't long time standby. 5) work environment is overheating or workload is too large, please note that the intermittent use, pay attention to heat dissipation. 6) shall, from time to time, keep the machine glass is clean, if there is pollution, please timely cleaning, otherwise it will affect the quality of seal. If not clean, please change in time. 7) exposure, the cabinet ventilation after there will be a little light, please do not look with the eye.
Photosensitive seal machine, laser seals machine is difference
Laser laser seals machine is depending on the laser tube, laser heat to carry on the chapter material p-level engraving, laser seals machine can be in plastic, horn, organic hard material such as sculpture; Photosensitive mirror is using optical principle, design through exposure printed on special photosensitive mat, the machine can only do the seal on the special light sensitive mat, photosensitive machine material cost is relatively a little higher, but the machine price is low, small volume, no pollution, the seal is made clear, so is welcome; Laser seals machine with cheap raw materials, economy applicable, in addition to ordinary seal carving, also can sculpture imitation steel seal, and printing, and so on ten thousand times! Second, laser seals machine price than the price of machine is expensive, but the price of laser seals machine consumables and photosensitive seal materials, photosensitive seal material price is higher.
Methods: portrait seal engraving
1. Open the image in PHOTOSHOP
2. Will go to the color image, as a black and white graphics (click the "adjust" menu bar "color")
3. To improve the resolution of the picture the 300
4. Adjust the image contrast and brightness
Mainly the use of the tools are: adjust - levels or curves
Illuminate people's face, eyebrows, eyes, mouth and other about local
Pay attention to duplicate the layer in the process of adjustment, to keep the previous results
5. After adjust, into the picture needs to make the size of the seal
6. The images into grayscale and then turn bitmap mode, the output resolution 300, method choice: halftone screen, frequency 100, round Angle of 30 degrees
Using ethnic font operating method is as follows:
Open C: \ WINDOWS \ Fonts directory, click on the "file" in the upper left corner to install new font, select a new font files in the directory, select the font file, press "ok"
